Animation Pro

A Roblox Studio plugin for creating polished menu, button and child-interface animations without hand-authoring every tween.

1 / 5

Animation Pro product artwork showing its floating animation toolbar and entrance, hover and click motion — enlarged view
1 / 4

Overview

Animation Pro gives Roblox developers a visual workflow for applying, previewing, tuning and saving polished UI entrance, exit, hover and click motion directly in Studio.

Animation Pro turns common Roblox interface motion into a visual authoring workflow inside Studio.

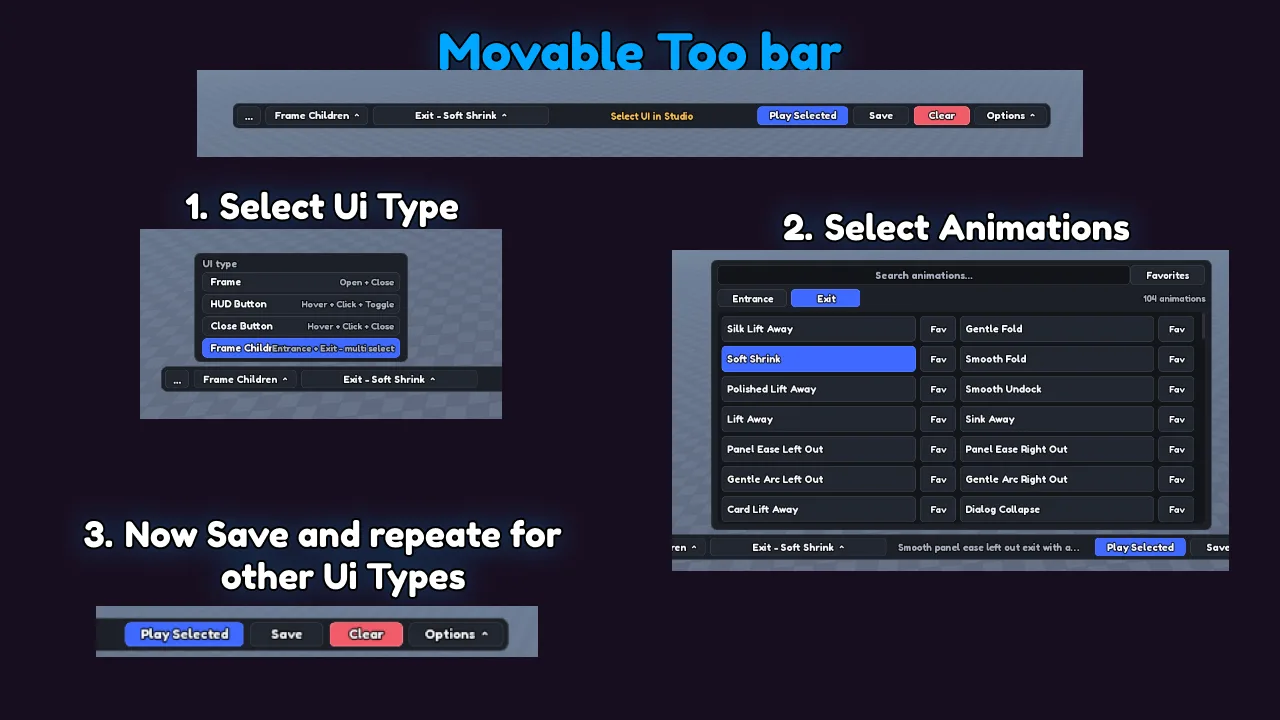

Start with the main UI

Select the main menu Frame or CanvasGroup, choose Frame as its UI Type, select its Open and Close animations, then press Save. This saved Frame becomes the target that the other Animation Pro UI types can link to.

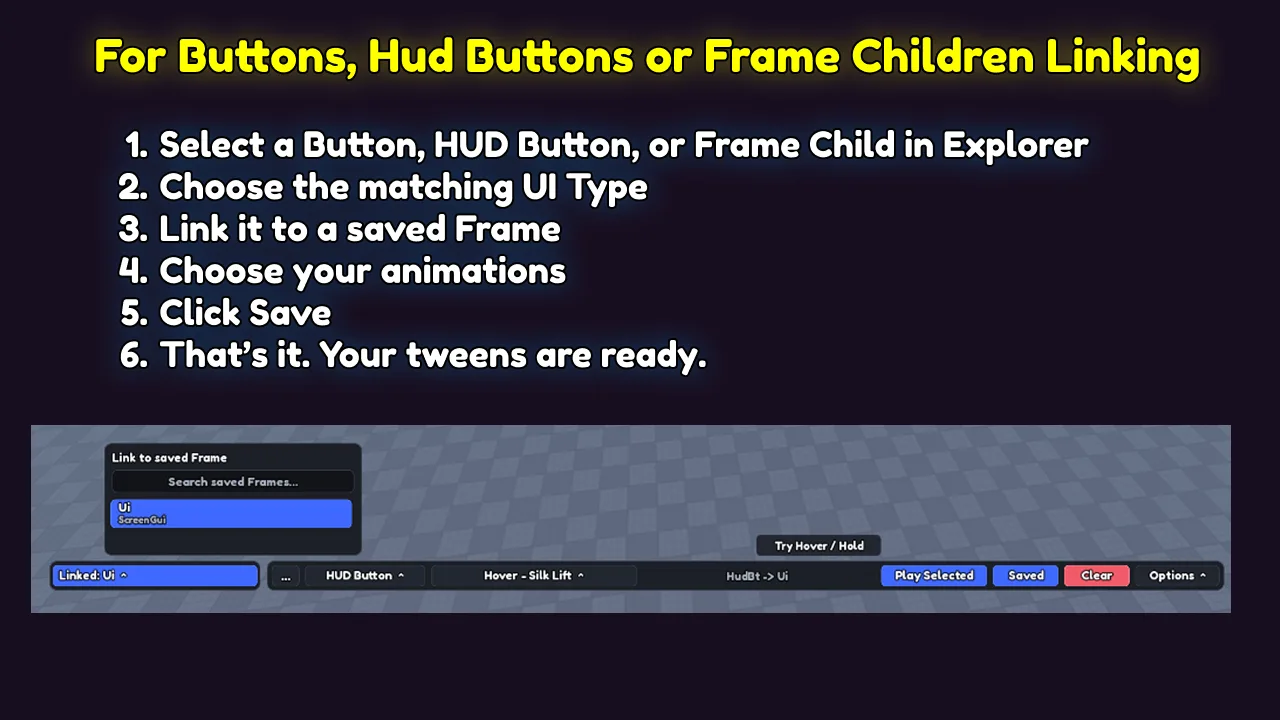

After the main UI is saved, select one of the three secondary types and pair it with that Frame:

  • HUD Button toggles the linked Frame open and closed.
  • Close Button closes the linked Frame.
  • Frame Children plays Entrance and Exit motion with the linked Frame; it does not act as another open or close button.

Choose the secondary UI’s own animations, preview them, then press Save again.

Animate complete menus

Assign a Frame, choose an Open and Close effect, preview the result and tune only the properties that matter to that animation.

Make buttons feel responsive

Link HUD and Close buttons to a saved Frame, then give them dedicated Hover and Click motion. HUD buttons can toggle the linked menu automatically, while Close buttons can dismiss it reliably across mouse, touch and gamepad input.

Build coordinated child motion

Select multiple Frame Children and apply Entrance or Exit effects in one pass. Adjustable stagger timing and direction create spatial waves across the selected interface, while layout-aware guidance helps avoid conflicts with Roblox layout objects.

Preview, tune and reuse

Search the animation browser, save favorites, adjust duration, motion, scale, rotation, easing and settle behavior, or save a property preset for another object. Preview playback returns the UI to its starting state when it finishes.

Read the Animation Pro documentation for the complete setup, linking workflow and Developer API reference.

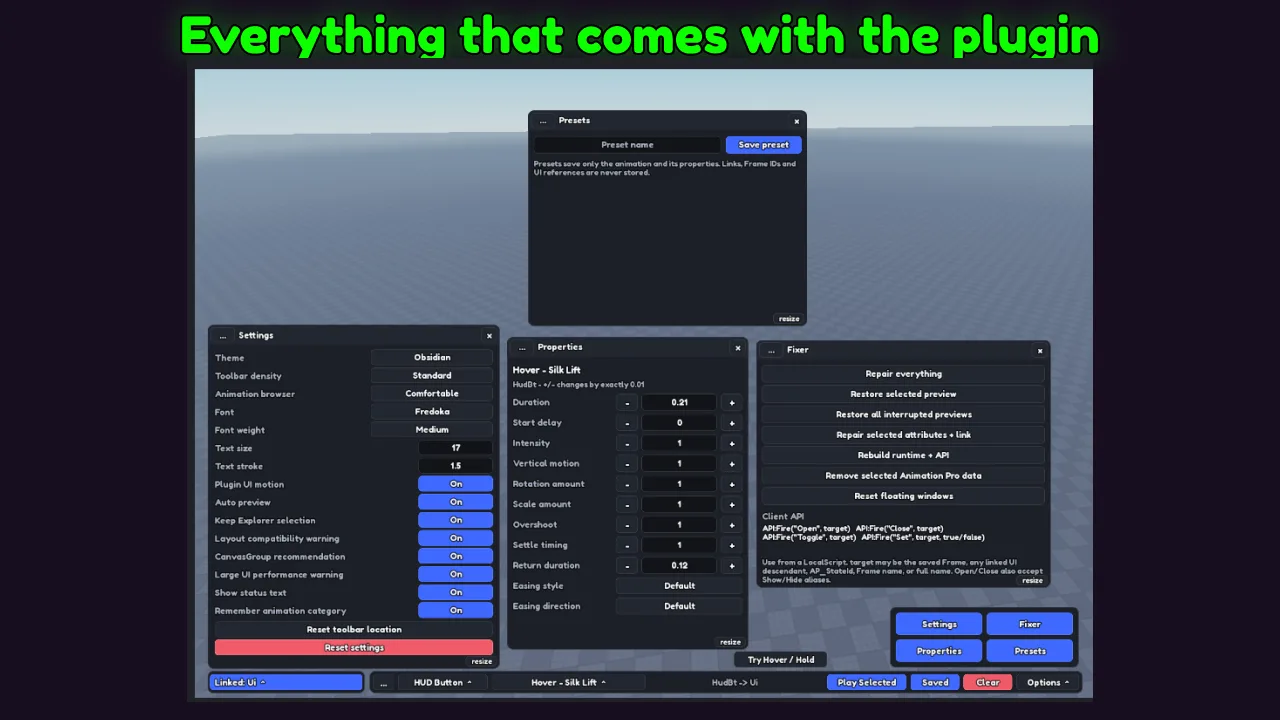

Features & requirements

Included

  • Open and Close animations for Frames and CanvasGroups
  • Hover and Click animations for HUD and Close buttons
  • Multi-select Entrance and Exit animation for Frame Children
  • Searchable animation browser with persistent favorites
  • Live Studio preview that restores the original UI state
  • Duration, delay, intensity, movement, rotation, scale, overshoot, settle and easing controls
  • Spatial child waves with adjustable stagger and reverse direction
  • Saved Frames and explicit linking for buttons and child UI
  • Automatic HUD toggle and Close button actions
  • Developer API with Open, Close, Toggle and Set controls
  • Reusable property presets and persistent plugin settings
  • Fourteen themes, compact and standard toolbar modes, and typography controls
  • Clear confirmations, interrupted-preview recovery and guided repair tools
  • Stacked compatibility and performance guidance that stays readable
  • Large UI guidance with an optional warning setting
  • Improved stability during extended Studio sessions
  • Studio Undo and Redo support for authoring changes

Useful for

  • Animate menus opening and closing
  • Add hover and click feedback to HUD and close buttons
  • Stagger child UI elements into or out of a frame
  • Tune reusable motion without hand-writing every tween
  • Control saved UI from custom client code through the Developer API

Before you start

  • Roblox Studio
  • A ScreenGui and GuiObjects under StarterGui
  • TextButton or ImageButton instances for HUD Button and Close Button roles
  • A LocalScript when using custom Developer API controls

Release notes

1.0Aug 26, 20268 changes
  • Released Frame Open and Close animation workflows.
  • Released HUD Button and Close Button Hover and Click workflows.
  • Released multi-select Frame Children Entrance and Exit workflows.
  • Added searchable animation browsing, favorites, live preview and property controls.
  • Added saved Frame linking, reusable presets and fourteen appearance themes.
  • Added compatibility guidance, large UI guidance and preview recovery tools.
  • Added mouse, touch and gamepad support for configured buttons.
  • Released the Developer API with Open, Close, Toggle and Set controls.

Use is subject to the GoldAstro Product Licence. Redistribution or resale of the source files is not allowed.
