Astro Scale

A Roblox Studio plugin for responsive UI scaling, Reclass, alignment, automatic conversion and final Perfect Scale cleanup.

1 / 4

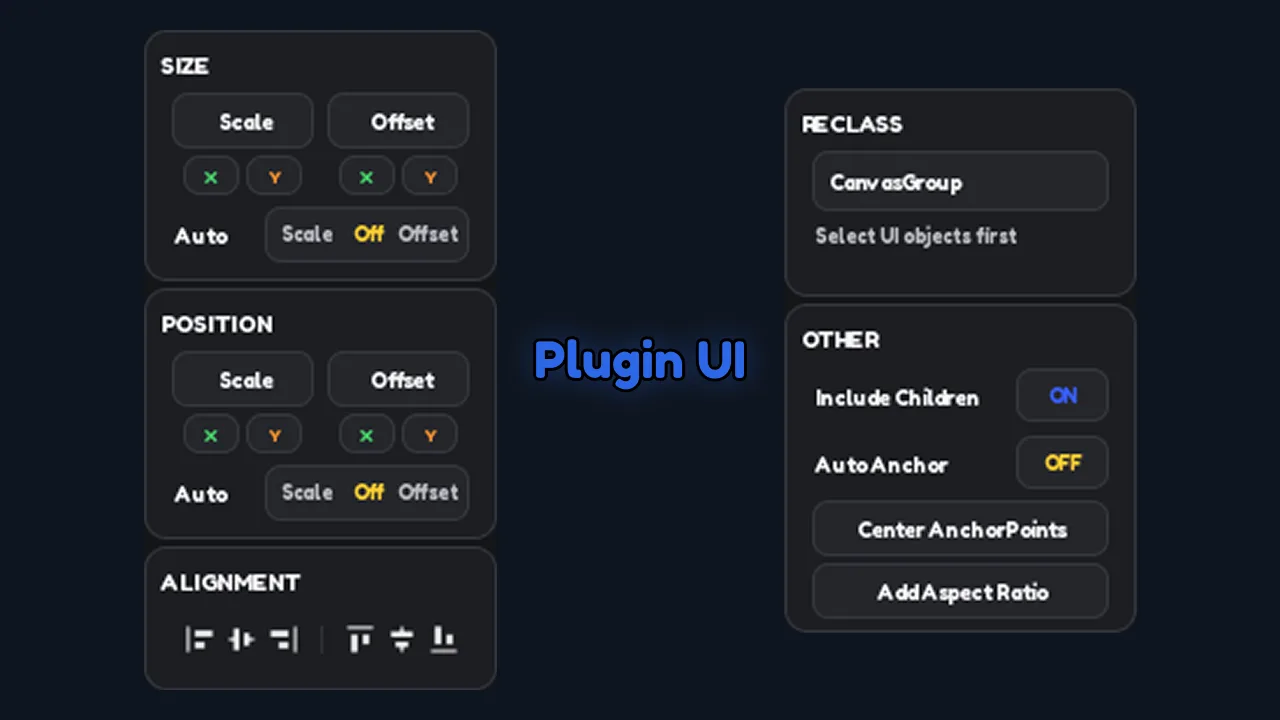

Astro Scale plugin overview with Size, Position, Alignment, Reclass and Other cards — enlarged view
1 / 4

Overview

Astro Scale helps Roblox developers convert finished interfaces between Scale and Offset, reclass selected UI objects, align interfaces, handle supported UI components and run a final Perfect Scale pass before shipping.

Astro Scale is a Roblox Studio plugin built for developers who want to make finished interfaces responsive without manually rebuilding every UI value.

Scale and Offset tools

Convert Size and Position between Scale and Offset, or use the dedicated X and Y controls when only one axis should change. Auto Size and Auto Position can keep selected UI in the mode you prefer while you continue working.

Perfect Scale

Select a completed ScreenGui and run Perfect Scale for a final responsiveness pass. Astro Scale recursively reviews the interface, cleans up supported Scale/Offset values, handles supported UI components, preserves working setups where possible, and avoids unnecessary repeat conversions.

UI tools

Astro Scale also includes Reclass, Figma-style alignment controls, AnchorPoint tools, text scaling, aspect-ratio utilities, Include Children, Auto Anchor, persistent settings, Undo/Redo support and compact conversion notifications.

Reclass

Use Reclass to change selected UI objects to another supported class. Type a class name, use autocomplete to confirm the intended result, and press Enter to apply it to the current selection.

Supported components include UIPadding, UICorner, UIStroke, UIGridLayout, supported layout padding and manually controlled ScrollingFrame.CanvasSize.

Every UI instance modified by Astro Scale receives:

AstroScale = "By GoldAstro"

Read the full Astro Scale documentation for setup, Perfect Scale behavior, Reclass, supported properties and recommended workflow.

Features & requirements

Included

  • Reclass selected UI objects with class autocomplete
  • Perfect Scale final-pass workflow for completed ScreenGuis
  • Size and Position conversion between Scale and Offset
  • X-only and Y-only conversion controls
  • Persistent Auto Size and Auto Position modes
  • Figma-style alignment tools
  • UIPadding, UICorner, UIStroke and UIGridLayout conversion
  • ScrollingFrame CanvasSize support
  • Text scaling and aspect-ratio utilities
  • Include Children and Auto Anchor controls
  • Studio Undo and Redo support
  • Persistent settings and AstroScale metadata attributes

Useful for

  • Convert completed Roblox interfaces from Offset to responsive Scale values
  • Reclass selected UI objects to supported classes
  • Run a final Perfect Scale cleanup on a completed ScreenGui
  • Convert Size or Position on only the X or Y axis
  • Automatically scale supported UI components and newly selected interface objects

Before you start

  • Roblox Studio
  • A Roblox experience containing Studio UI objects to convert
  • A completed or mostly completed ScreenGui before using Perfect Scale
  • Testing across the target resolutions after large UI changes

Release notes

1.1.0Sep 1, 20263 changes
  • Renamed Scale Pro to Astro Scale.
  • Added Reclass for changing selected UI objects to supported classes.
  • Fixed bugs and improved overall stability.
1.0.0Aug 20, 202616 changes
  • Released manual Size and Position conversion between Scale and Offset.
  • Added X-only and Y-only Size and Position conversion controls.
  • Added persistent Auto Size and Auto Position modes.
  • Added Include Children control for direct or recursive conversions.
  • Added Auto Anchor and manual Center AnchorPoints utilities.
  • Added Figma-style alignment controls for left, horizontal center, right, top, vertical center and bottom.
  • Added UIPadding, UICorner, UIStroke, UIGridLayout and layout-padding conversion support.
  • Added ScrollingFrame CanvasSize conversion for manually sized canvases.
  • Added conservative text scaling and UITextSizeConstraint support.
  • Added manual and Perfect Scale aspect-ratio handling.
  • Added the Perfect Scale final-pass workflow for completed ScreenGuis.
  • Added persistent AstroScale metadata attributes to UI modified by the plugin.

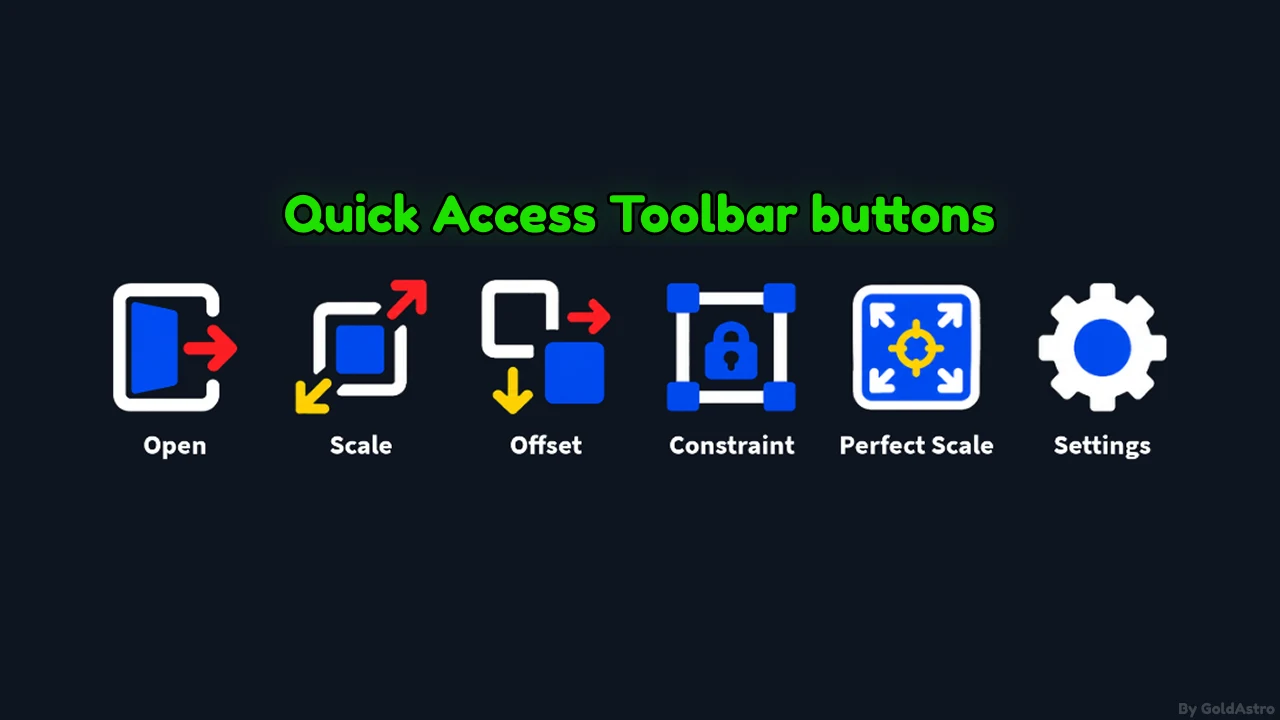

  • Added toolbar actions for Open, Scale, Offset, Text Scale, Constraint, Perfect Scale and Settings.

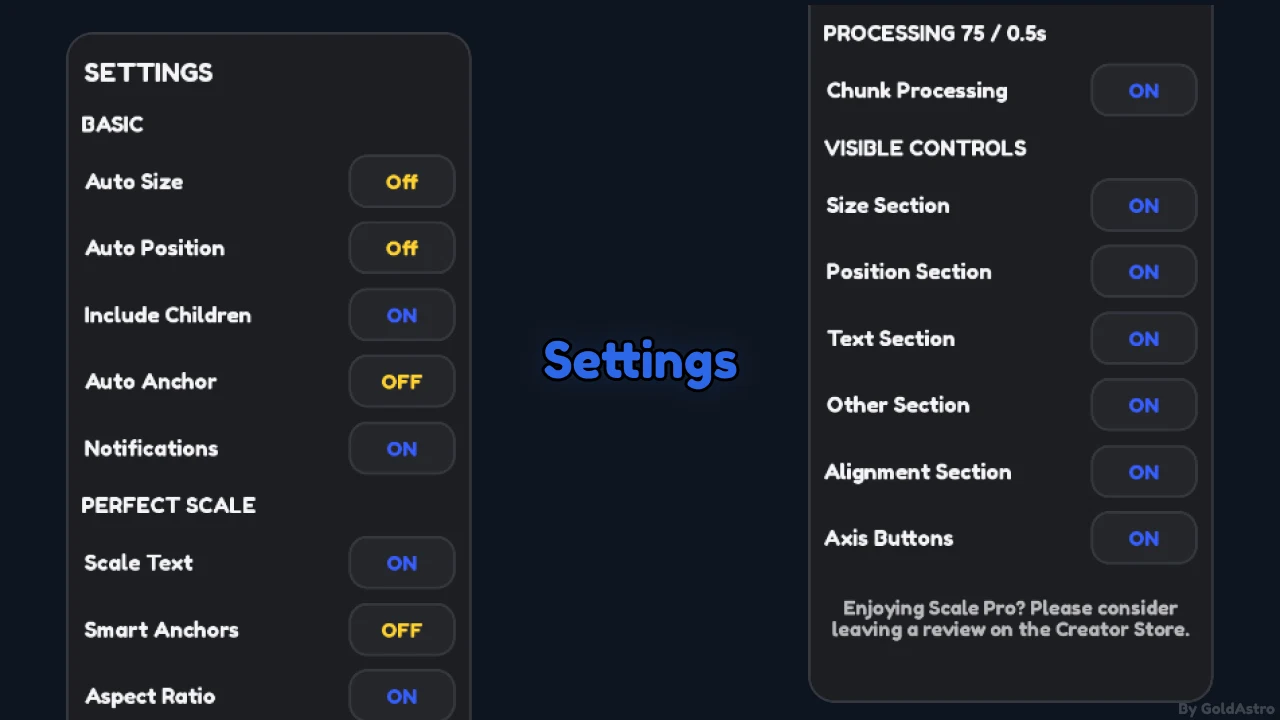

  • Added persistent Studio settings and configurable visibility selectors.
  • Added single-step ChangeHistory recordings for Undo and Redo.
  • Added adaptive queued notifications and polished button interaction tweens.

Use is subject to the GoldAstro Product Licence. Redistribution or resale of the source files is not allowed.
